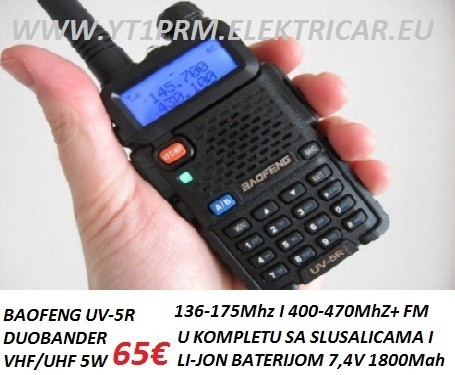

Baofeng uv5r rucni duoband radio stanica

Baofeng uv5r rucni duoband radio stanica

64,80 €
Sa PDV-om; troškovi isporuke nisu uključeni
Na zalihama
Poručivanje telefonom - +38166002212+38166002212, 07:00-20:00
Kod proizvoda - SKU: 1354

Opis

NEW BAOFENG UV-5R 4W
136-174/400-480Mhz
BAOFENG UV-5R The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability

VHF/ UHF DUAL-BAND TWO WAY RADIO

  • Frequency Range: 136-174 / 400-480MHz
  • Dual-Band Display, Dual Freq. Display, Dual-Standby
  • Output Power: 4 /1Watts
  • 128 Channels
    50 CTCSS and 104 CDCSS
  • Built-in VOX Function
  • 1750Hz Brust Tone
  • FM Radio (65.0MHz-108.0MHz)
  • LED Flashlight
  • Large LCD Display
  • High/Low RF Power Switchable
  • 25KHz/12.5KHz Switchable
  • Emergency Alert
  • Low Battery Alert
  • Battery Saver
  • Time-out Timer
  • Keypad Lock
  • Monitor Channel
  • Channel Step: 2.5/5/6.25/10/12.5/25KHz
  • ROGER SET







BAOFENG UV-5R Compare Products

■ Dual band, dual display, dual standby ■ A/B band independent operation
■ 128 groups channels storage ■ Shortcut menu operation mode
■ VFO & Memory channels scan ■ Emergency Alarm
■ Tri-color background light selectable ■ 0~9 grades VOX selectable
■ PTT & ANI ID ■ FM radio
■ Voice companding ■ 50 CTCSS/104 DCS
■ ■ PC programmable
■ Wide/Narrow Band(25kHz/12.5kHz) ■ Transmitter time-out timer(TOT)
■ High/Low TX power selectable ■ Busy channel lock-out(BCLO)
■ ■
■ ■



Specifications:




Item number UV-5R
General
Frequency Range 65-108MHz(FM Receive only)
136-174MHZ and 400-480MHZ (TX/RX)
Channel No. 128
Frequency Stability ±2.5ppm
Antenna High gain DualBand antenna
Antenna Impedance 50Ω
Operating Voltage DC 7.4V
Mode of operation Simple or semi-duplex
Dimension（W x H x D） 100 x 52 x 32 mm
Weight 250g（including battery, antenna）
Transmitter
Output power 4W / 1W (Max 5W)
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation ＜5kHz(Wide) / ＜2.5kHz(Narrow)
Spurious Radiation ＜7μW
Adjacent Ch. power ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics 6dB
Current ≤1.6A(5W)
CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity 8-12mv
Intermediation distortion ＜10%





Earpiece / mic type : Kenwood Plug type
Antenna : SMA -Female
